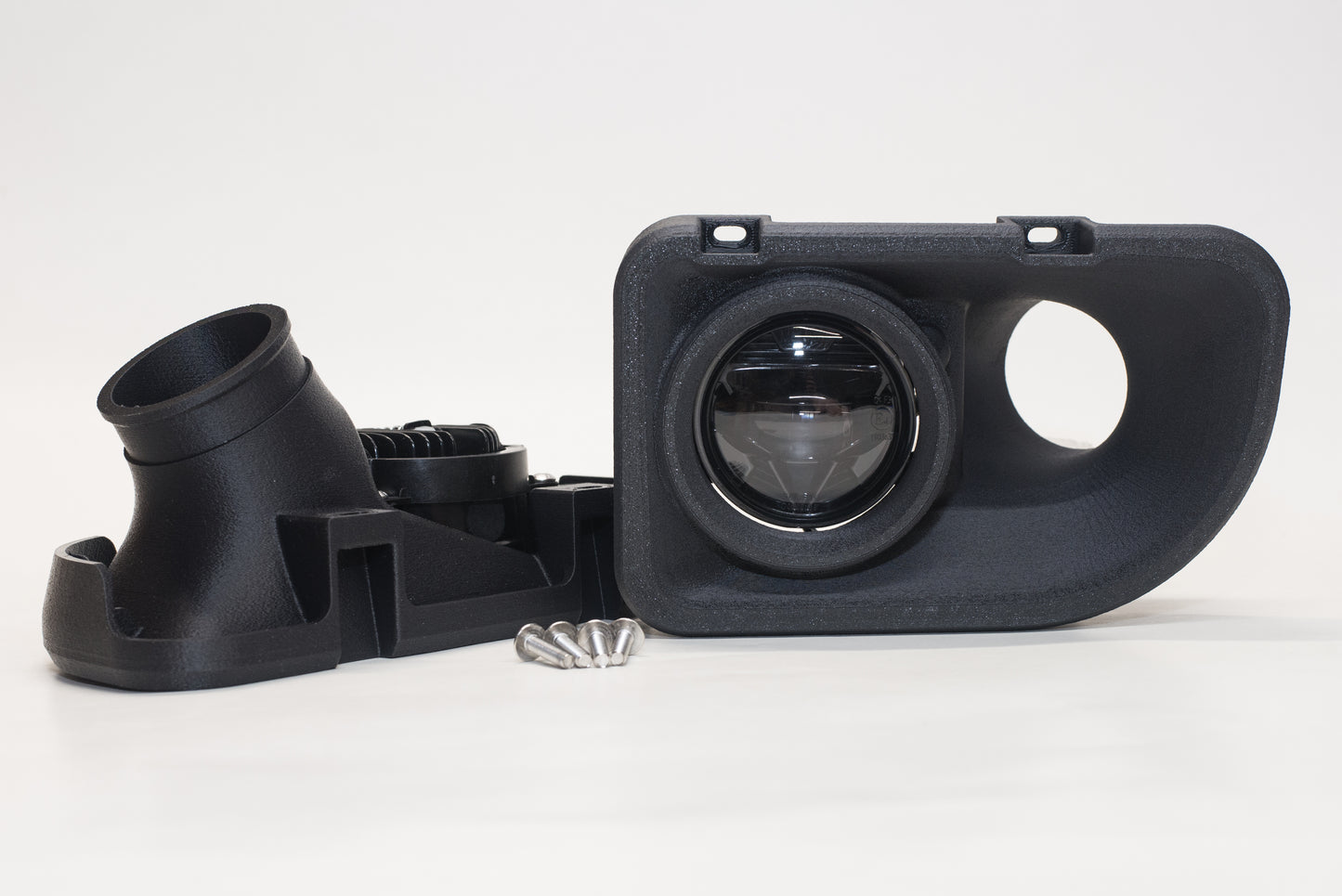

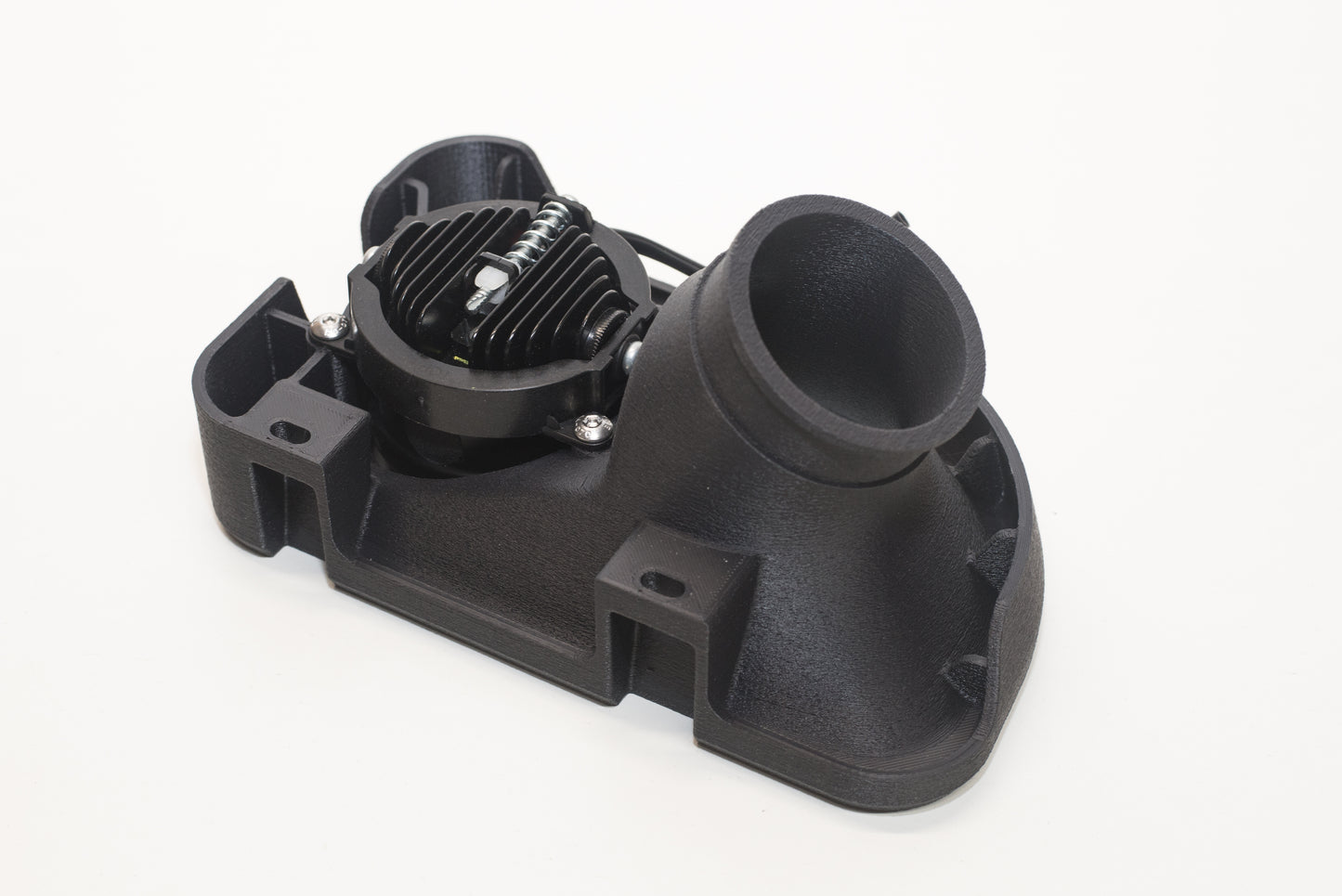

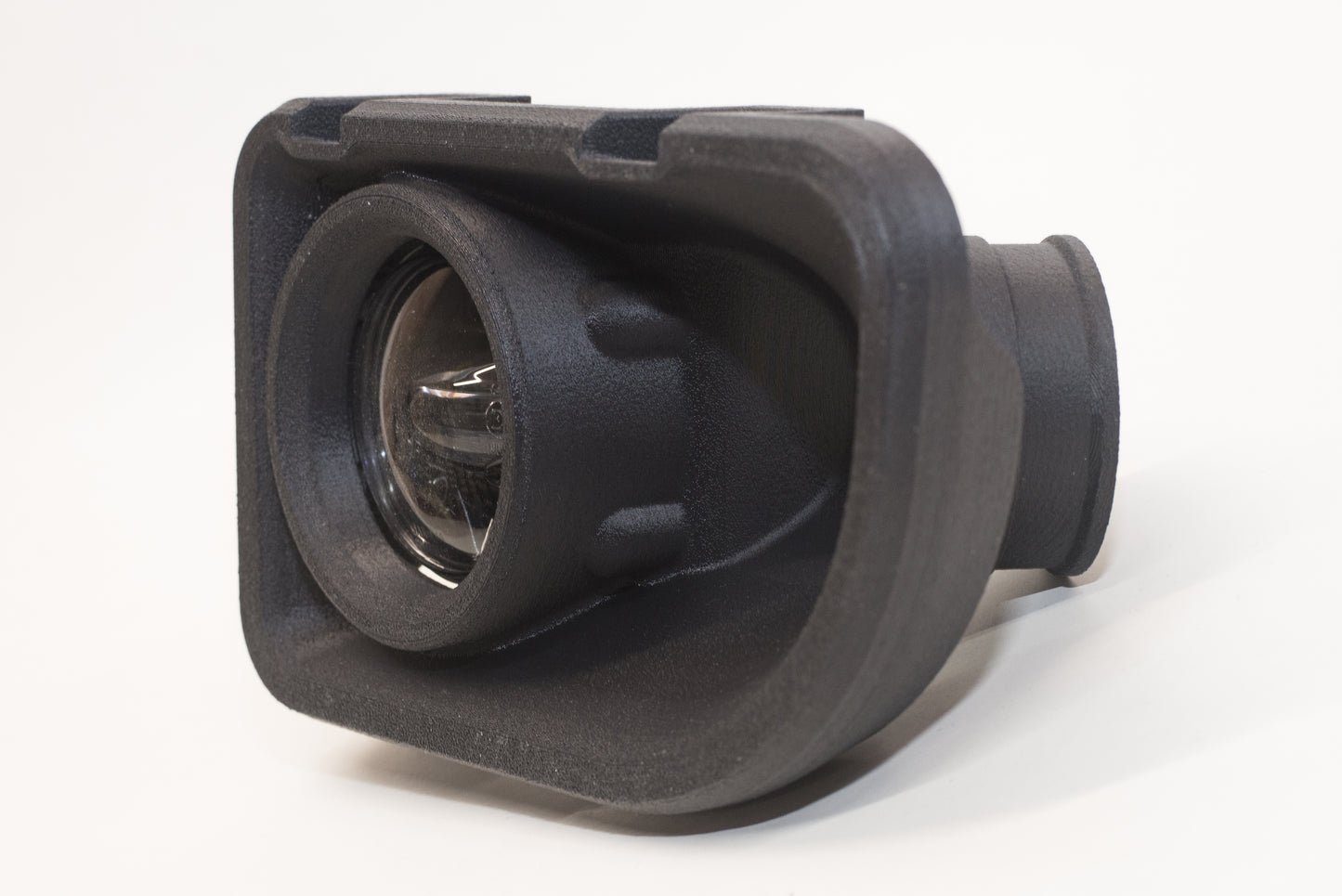

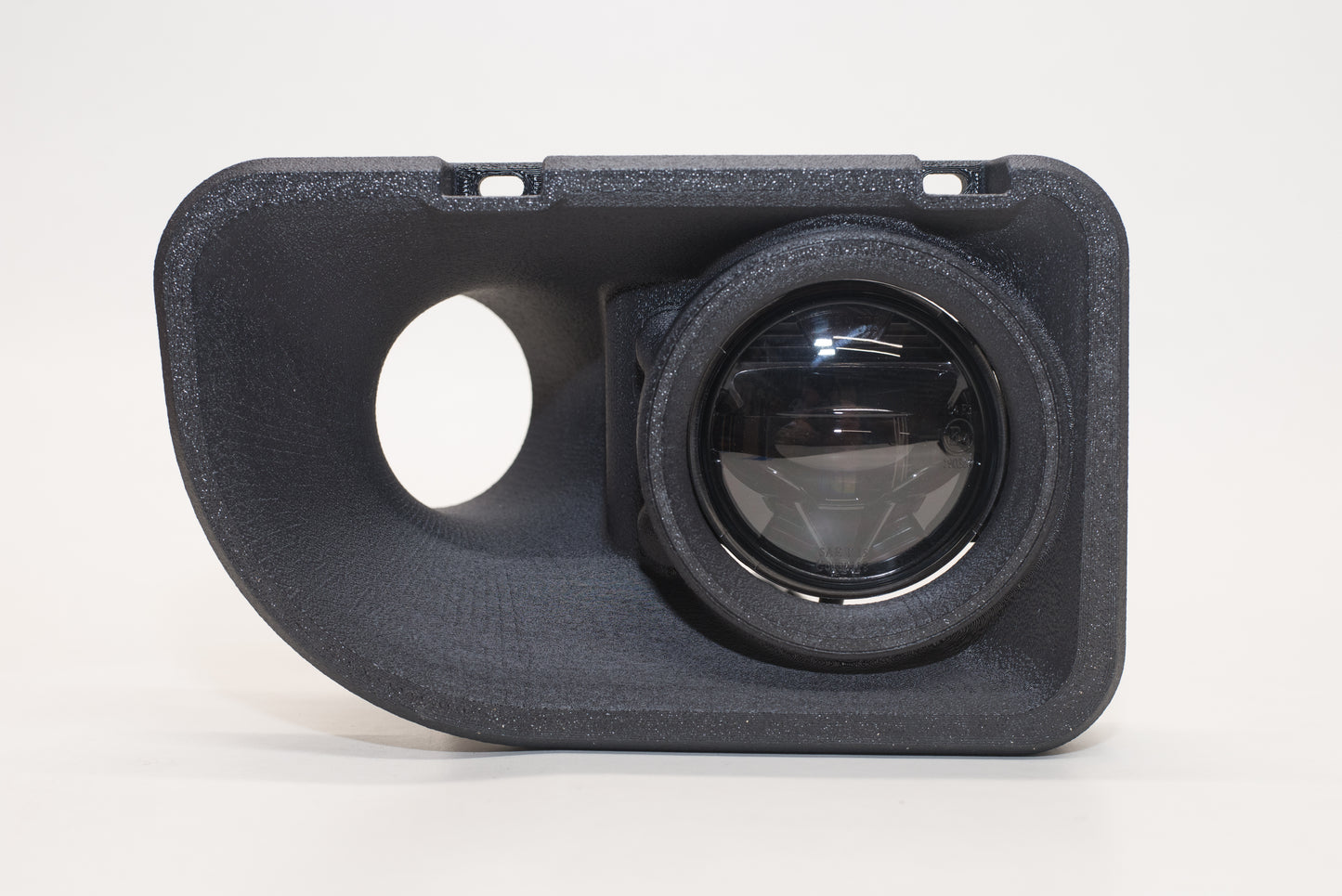

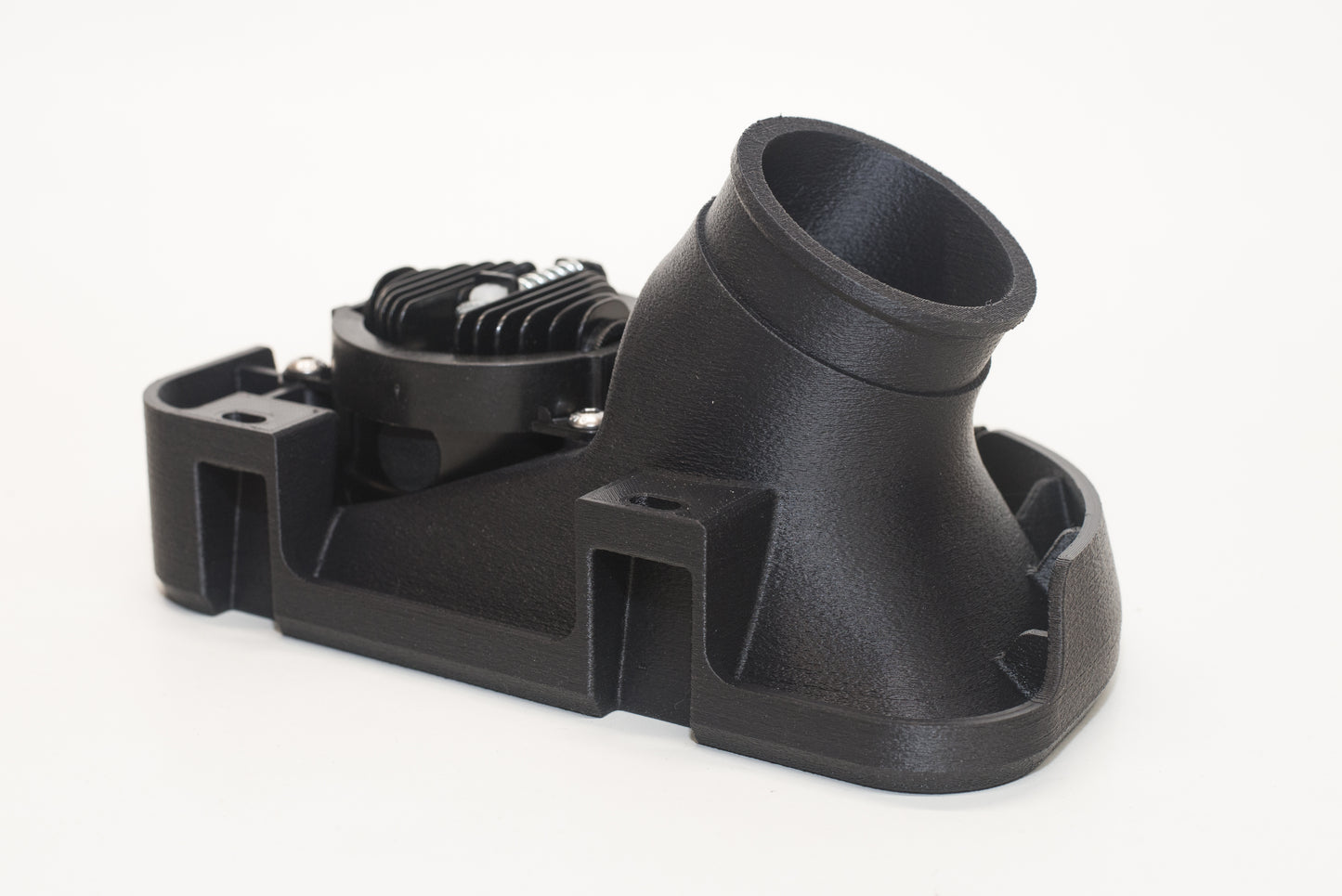

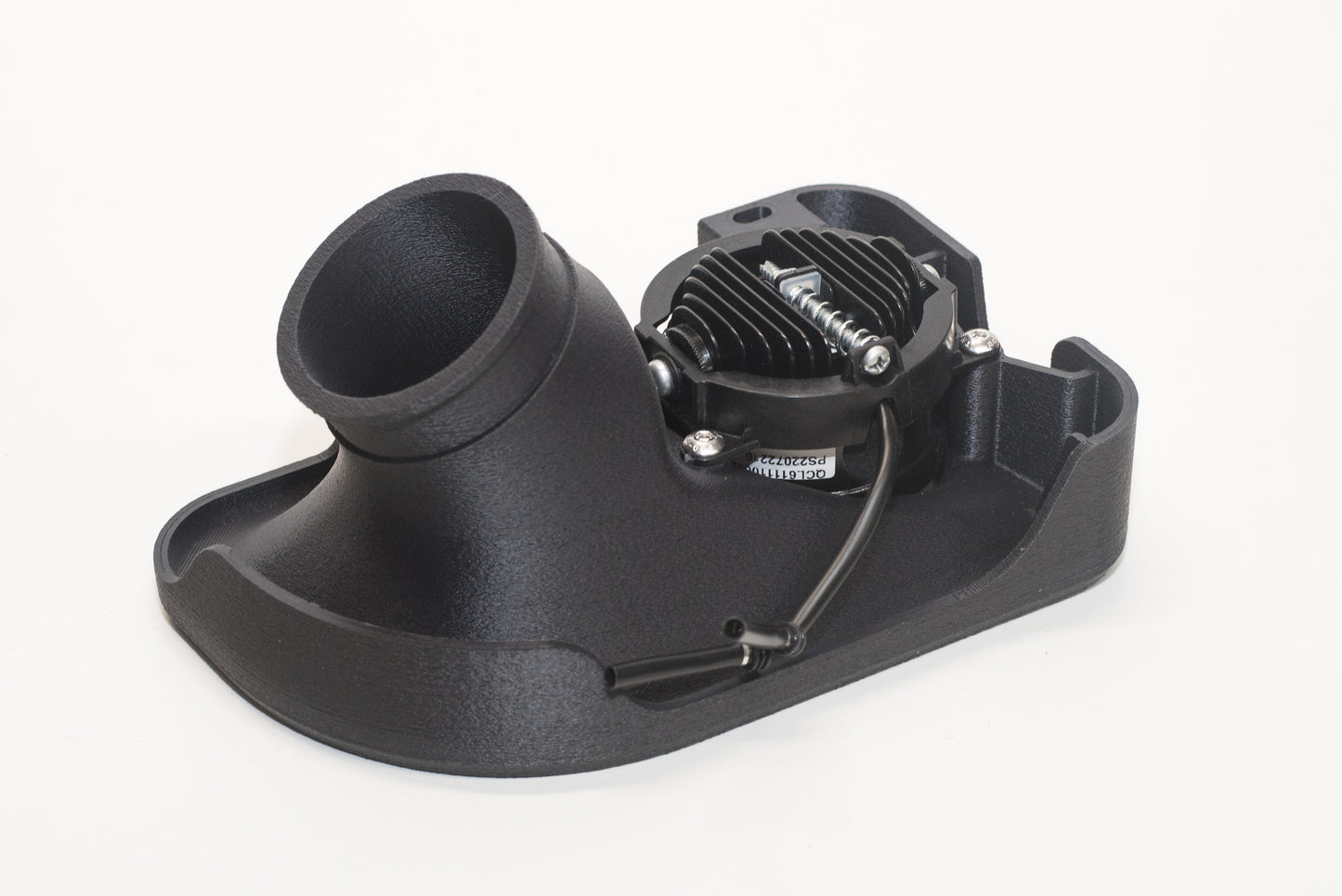

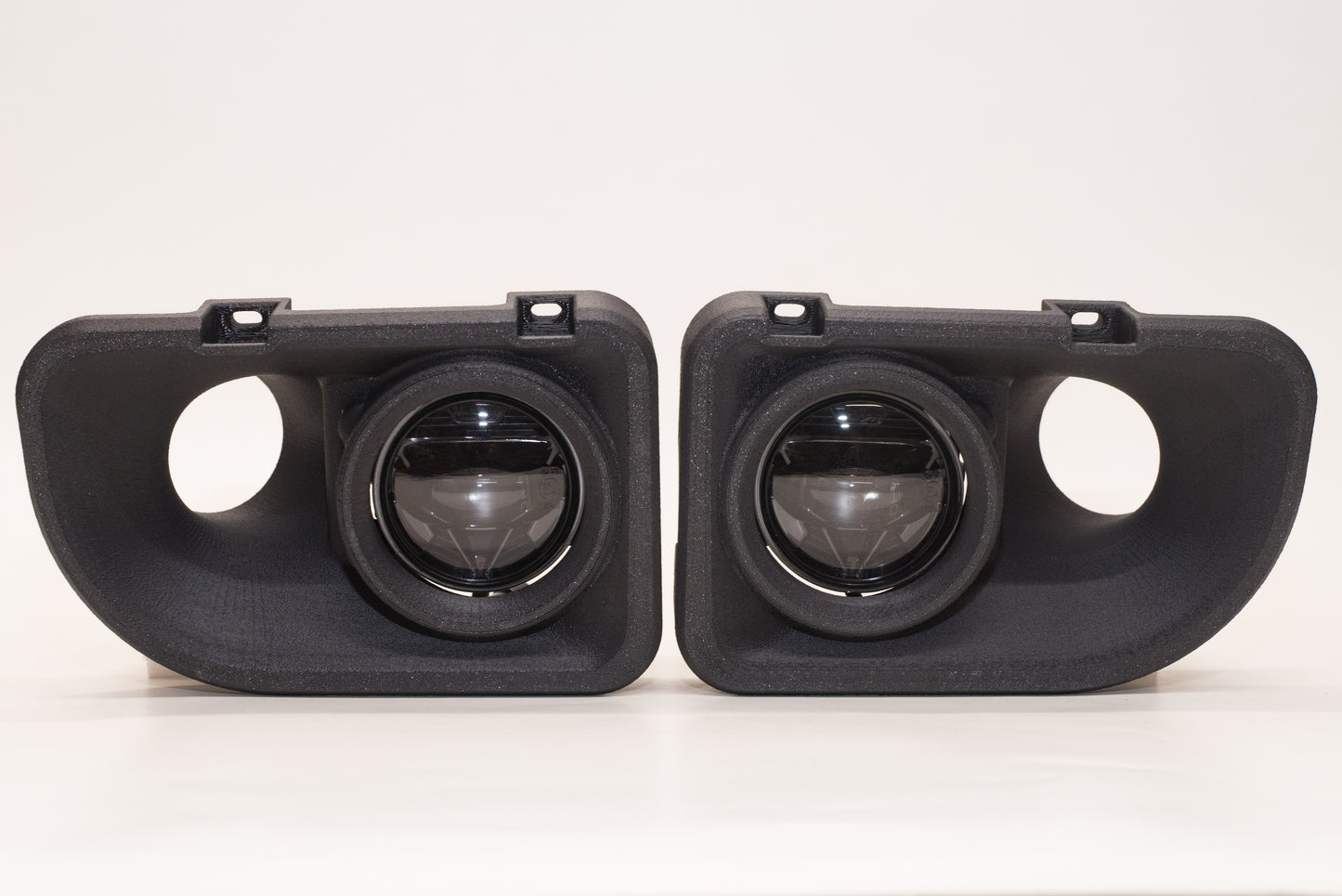

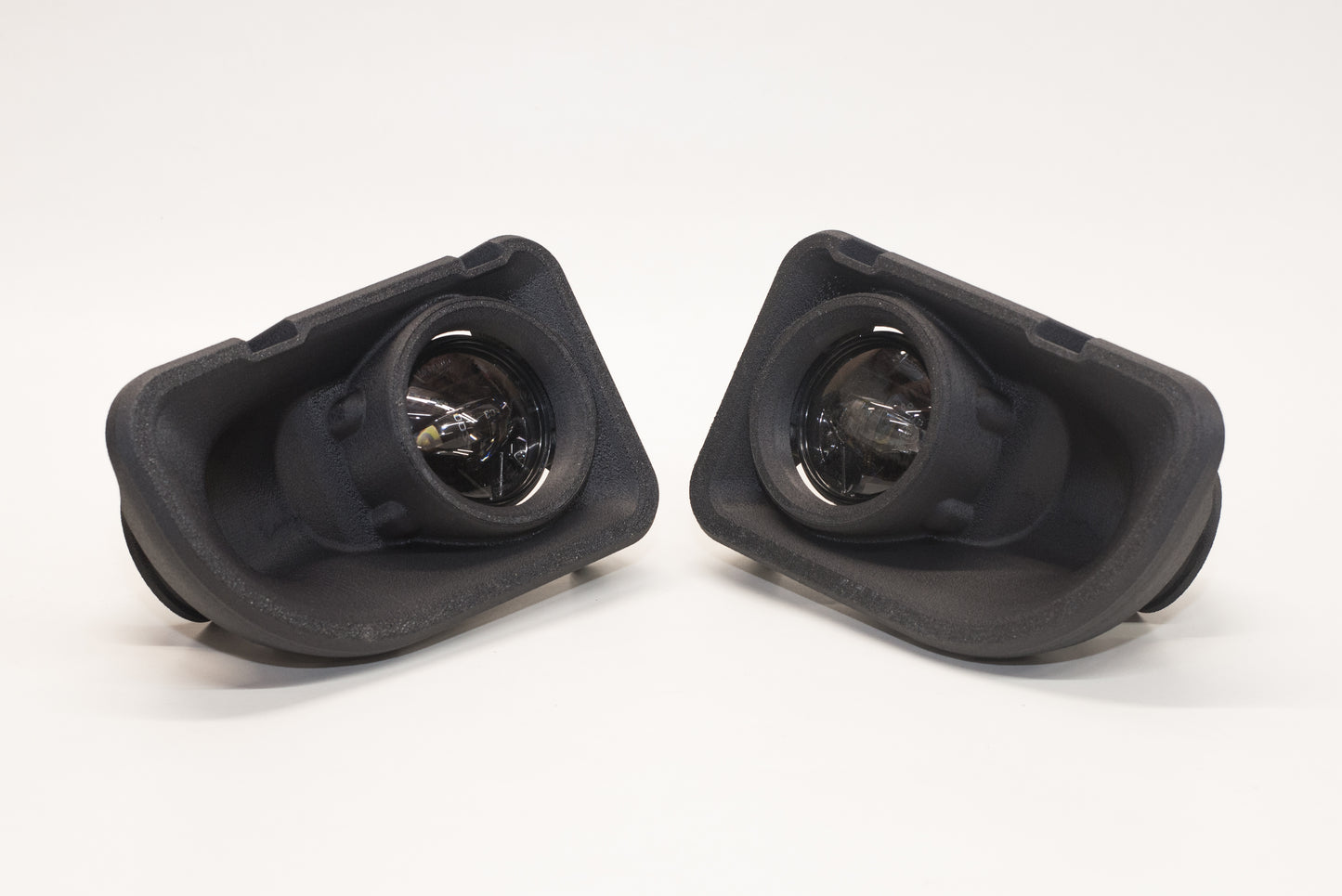

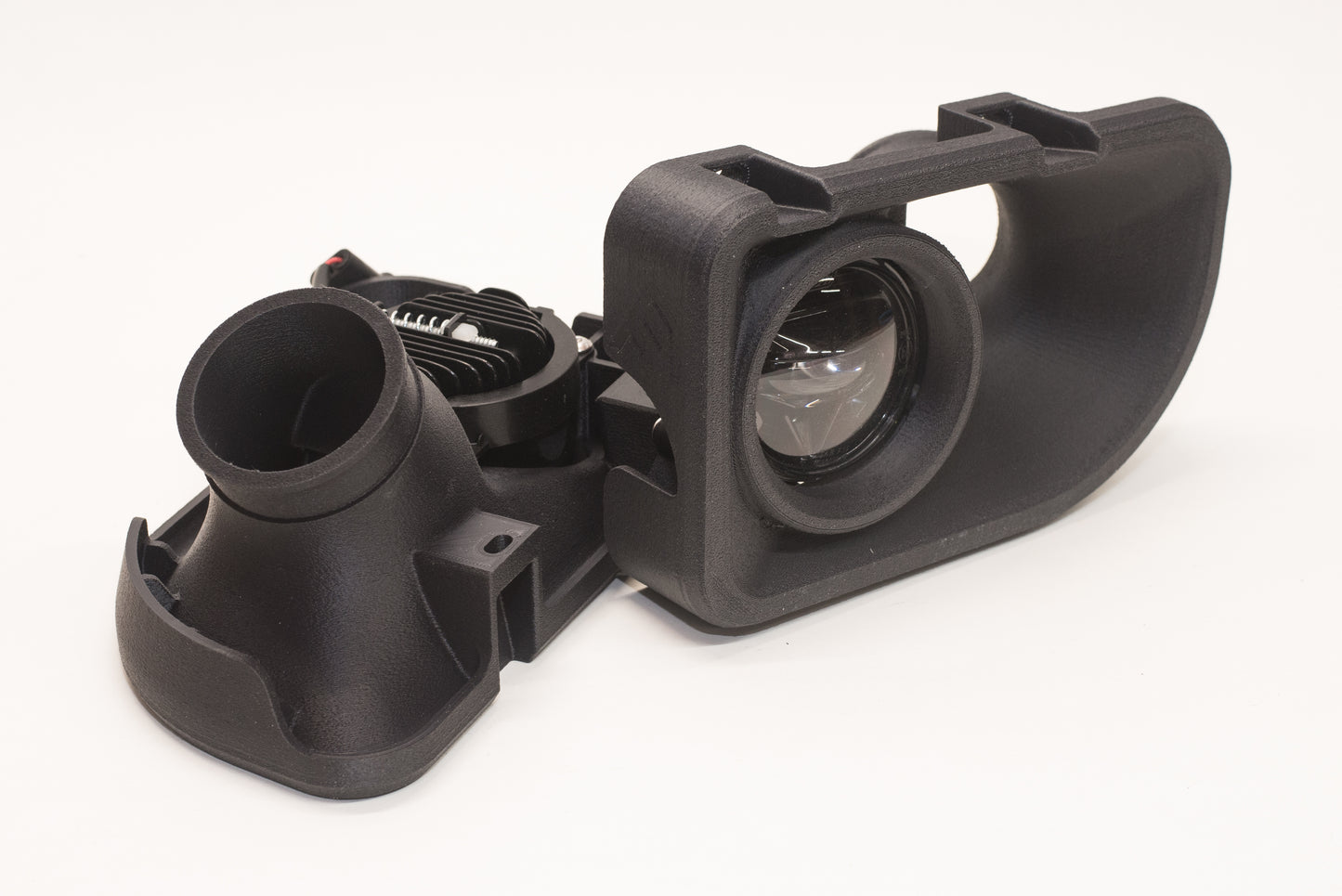

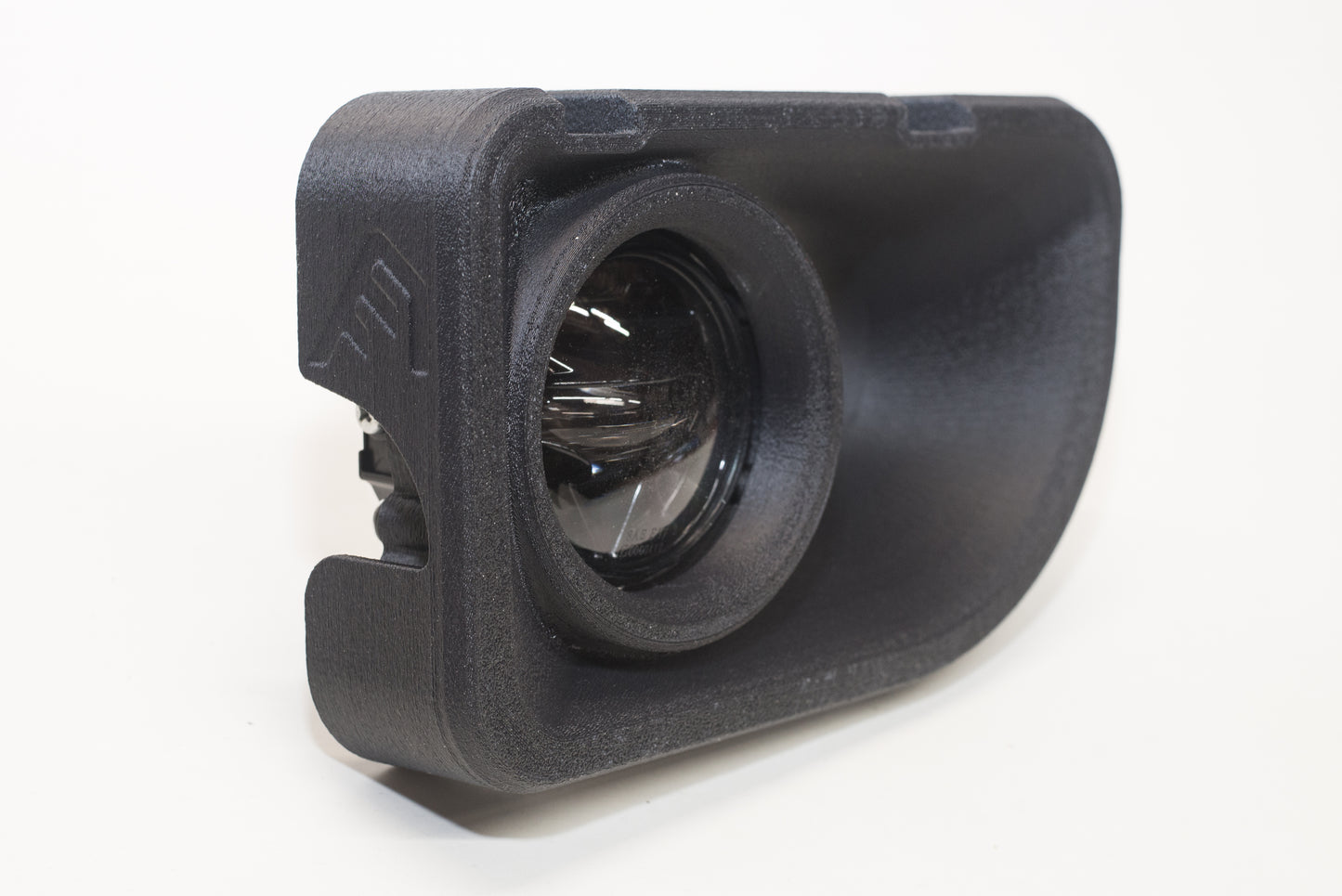

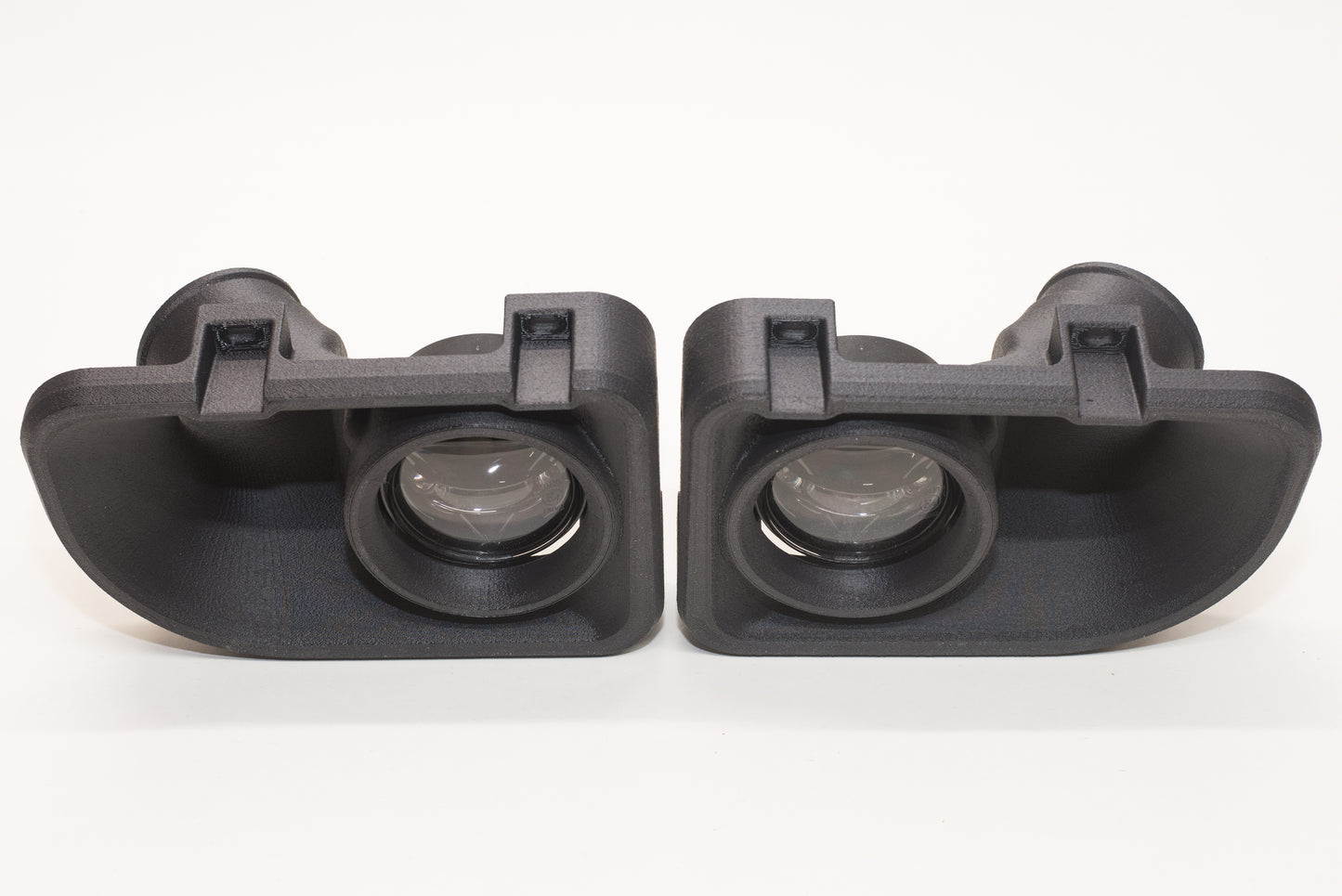

Have the best of both worlds with these Fulcrum Design fog light brake ducts! Now you don't have to give up having fog lights just to cool your brakes. Our innovative housing design is based off our popular standalone brake ducts to give you the best combination of form and function. And to top it all off, we use the exceptional Morimoto XB Type U 70mm fog light to provide a balance of light output, water-proof design, and reliability - all in a small package. The lights themselves come with Morimoto's outstanding 10-year limited warranty.
Features:

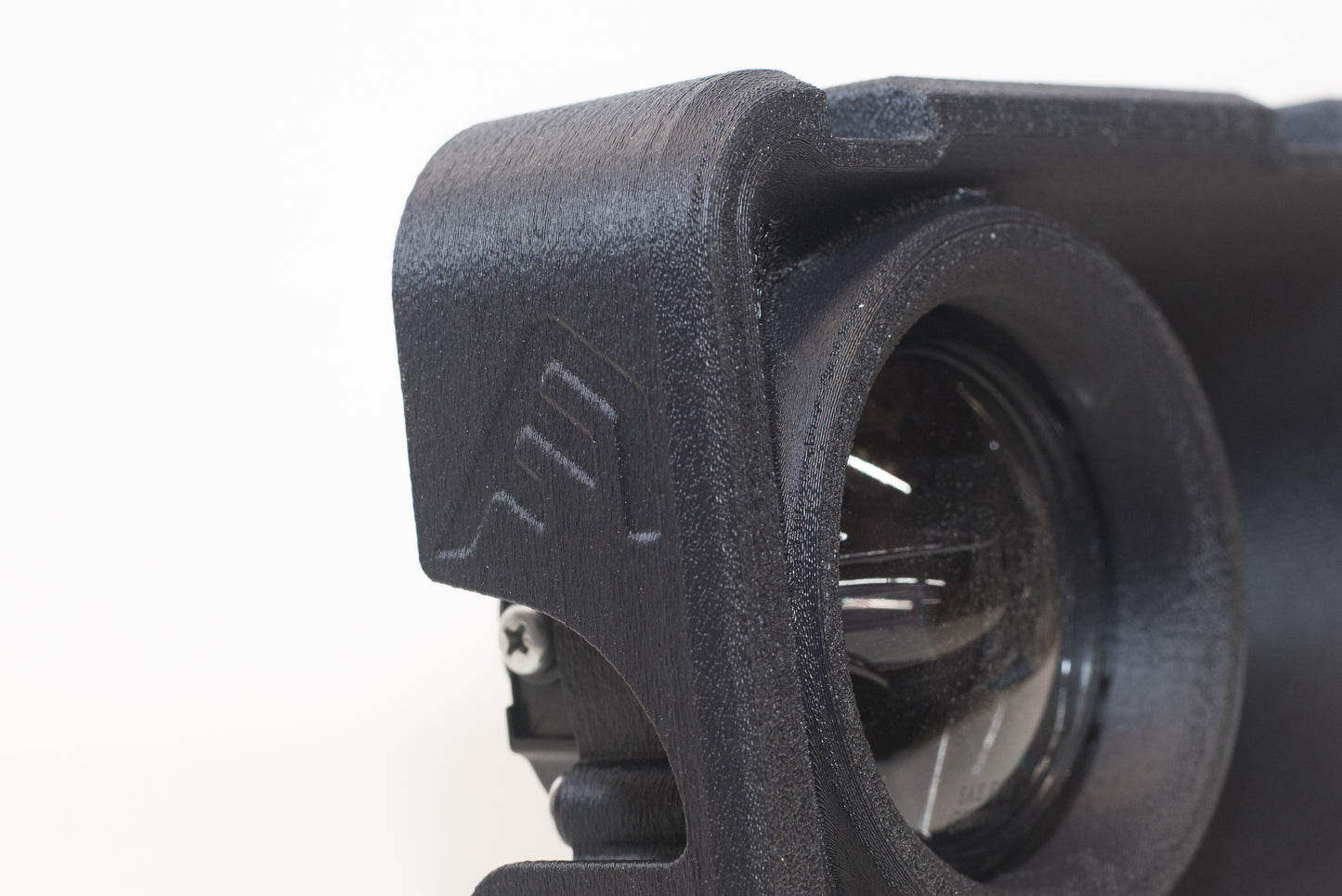

Ruggedized housings are made from ASA for strength, temperature resistance, and UV resistance.
2.5" duct size designed to work with 2.5" air duct hose and 2.5" hose clamps.

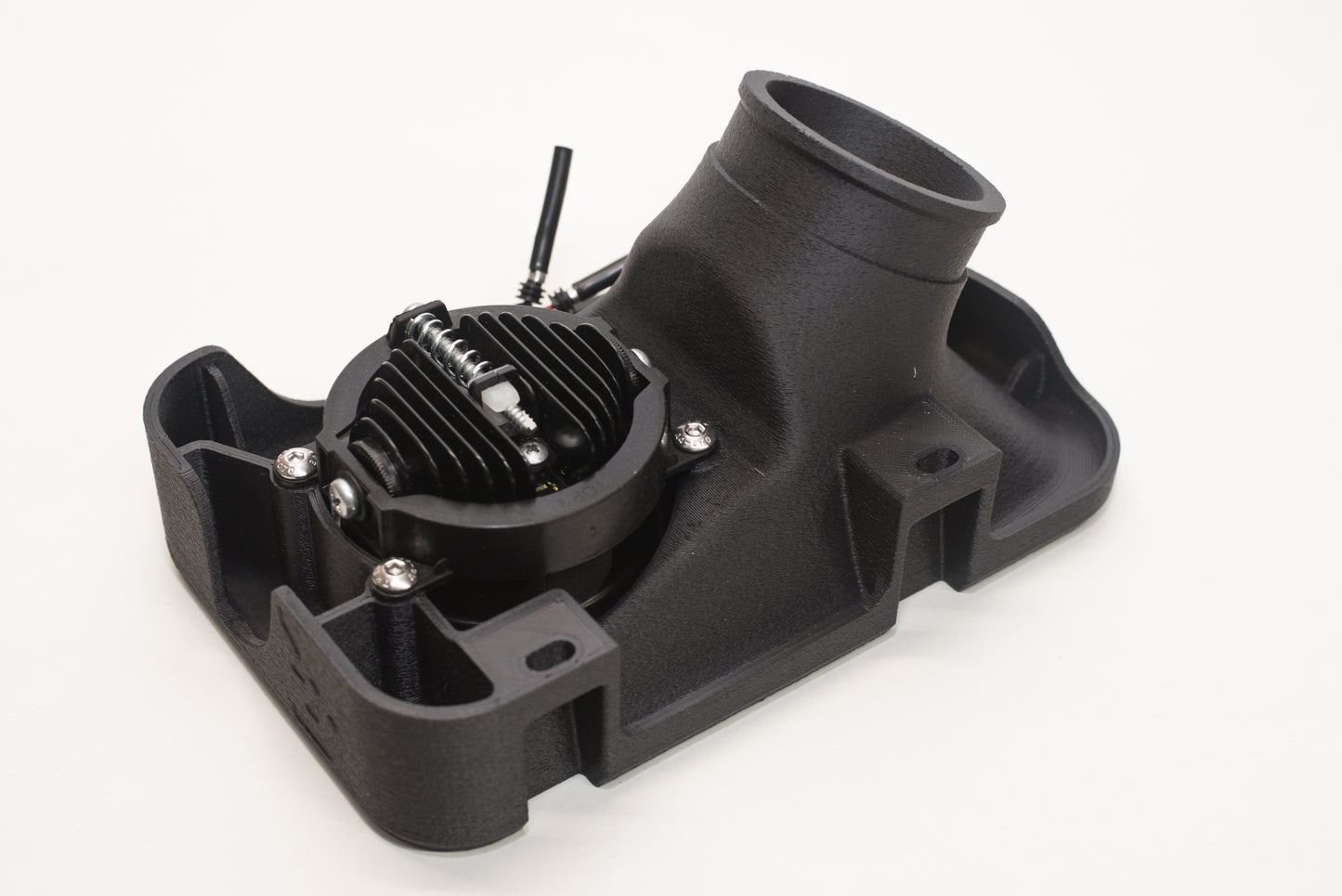

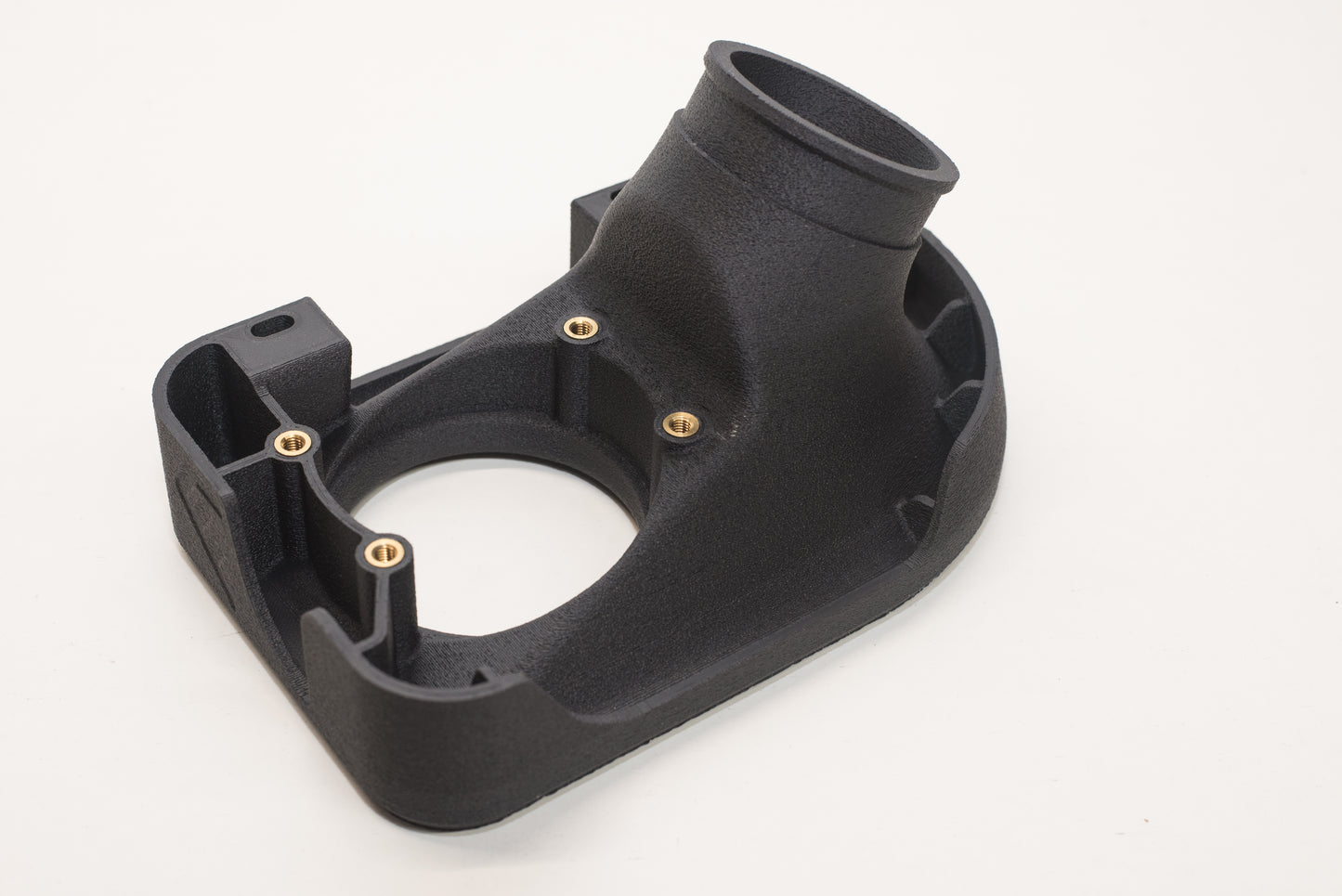

Threaded brass inserts provide real threads to mount the lights along with 316 stainless steel bolts.
Uses the same mounting points as the OEM fog lights with 316 stainless steel M5 bolts included. Mounting flanges have been significantly thickened over the stock design for added robustness.
316 stainless steel provides excellent corrosion resistance under all conditions, including salt spray (stronger and more corrosion resistant than 304 SS).
1200 lumens per side from 3 Nichia 5500K LED bulbs provide a total of 2400 lumens.
Lights will come unterminated (terminals preinstalled and connector housing included in box) for the best application flexibility (see plug-and-playability section below).
Plug-and-playability (please read):
If you already have aftermarket fog lights with H11 connectors, then these are 100% plug-and-play!
If your car is wired for OEM fog lights, you just need to replace the OEM connector with an H11 female connector and you're good to go. Alternatively, if you don't want to modify the car side harness, you can splice the fog light wires into the existing OEM connector.
If your car isn't wired for fog lights then you'll need to source the appropriate fog light switch, fuse, relay, and wiring harness and replace the OEM connector with an H11 female connector.
Options:
Lamin-X yellow protective lens film. Designed to cut through fog, snow, rain, and dust more effectively than white light, ensuring optimal visibility during adverse weather conditions while also protecting the lens.
